4. Working with GridImage: Grid-Specific Features

This tutorial focuses on GridImage - a specialized class for analyzing arrayed microbe colonies on solid media agar plates.

---

Prerequisites

Before starting this tutorial, please complete the {doc} Image to understand the core Image class features (rgb, gray, enh_gray, objmap, objects, etc.).

What Makes GridImage Special?

GridImage extends Image with grid-specific functionality:

• Automatic grid alignment to detected colonies

• Grid position tracking (row, column, section)

• Grid-based visualization

• Position information in measurements

When to Use GridImage

✅ Use GridImage for: 96-well plates, 384-well plates, any arrayed format

❌ Use regular Image for: Single colonies, random arrangements

Let’s explore the grid-specific features!

Setup: Import Libraries

First, let’s import the phenotypic library (commonly abbreviated as pht).

import phenotypic as pht
import numpy as np
import matplotlib.pyplot as plt

Part 2: Grid-Specific Components

Now let’s explore the components that are unique to GridImage:

Grid Components

1. ``grid_finder``: The algorithm that determines where grid lines should be placed

   • Default: AutoGridFinder - automatically aligns to detected colonies

   • Alternative: ManualGridFinder - for manual grid specification

2. ``grid``: An accessor object that provides grid-specific operations

   • Access grid information

   • Get individual grid sections

   • Visualize rows and columns

3. ``nrows`` and ``ncols``: Grid dimensions (can be adjusted)

4. ``show_overlay()``: Enhanced visualization with gridlines and labels

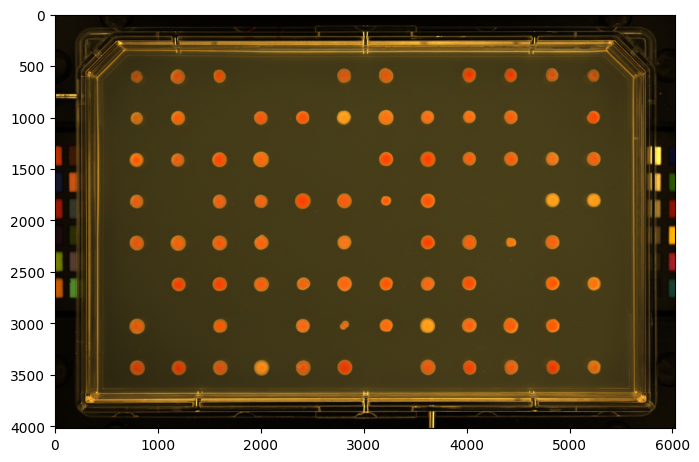

image = pht.data.load_imager_plate(mode="GridImage")
image.name = "MyGridImage"
image.show()

(<Figure size 800x600 with 1 Axes>, <Axes: >)

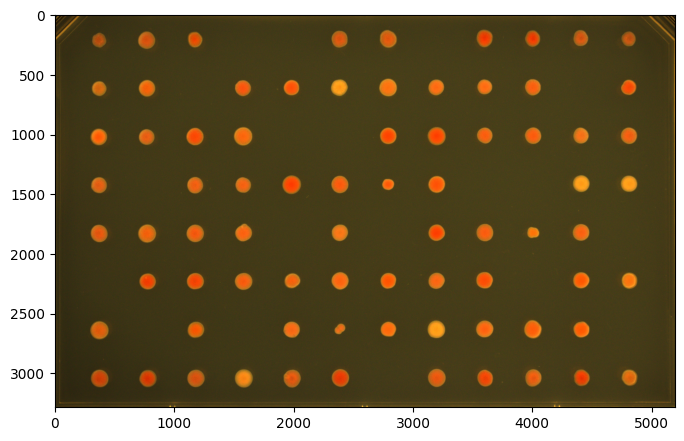

image = image[390:3675, 425:5620]  # Cropping a GridImage returns a regular Image
print(f"Cropped type: {type(image)}")

image = pht.GridImage(image)
print(f"Converted back: {type(image)}")

image.show()

Cropped type: <class 'phenotypic.core._image.Image'>
Converted back: <class 'phenotypic.core._grid_image.GridImage'>

(<Figure size 800x600 with 1 Axes>, <Axes: >)

# Examine grid properties
print(f"Grid finder type: {type(image.grid_finder).__name__}")
print(f"Number of rows: {image.nrows}")
print(f"Number of columns: {image.ncols}")
print(f"Total sections: {image.nrows*image.ncols}")

Grid finder type: AutoGridFinder
Number of rows: 8
Number of columns: 12
Total sections: 96

pht.detect.RoundPeaksDetector().apply(image, inplace=True)

# The S&P imager uses plates that have a corner cutthing through the image, so we remove it with BorderObjectRemover
pht.refine.BorderObjectRemover(100).apply(image, inplace=True)
image.show_overlay()

Notice how:

• Cyan dashed lines show the grid boundaries

• Column numbers appear at the top (0-11)

• Row numbers appear on the right (0-7)

• Colored boxes show which colonies belong to which grid section

Part 4: Accessing Grid Information

After detection, the grid is automatically aligned to the colonies. We can access detailed grid assignment information using grid.info().

# Get grid information for all colonies
grid_info = image.grid.info(include_metadata=True)

# Display first 10 colonies
print("Grid Information for Detected Colonies:")
print()
grid_info.head(10)

Grid Information for Detected Colonies:

	Metadata_BitDepth	Metadata_ImageType	Metadata_ImageName	ObjectLabel	Bbox_CenterRR	Bbox_CenterCC	Bbox_MinRR	Bbox_MinCC	Bbox_MaxRR	Bbox_MaxCC	Grid_RowNum	Grid_ColNum	Grid_SectionNum
0	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	1	203.223483	3599.114734	133	3534	277	3666	0	8	8
1	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	2	208.305812	2791.626799	134	2722	283	2865	0	6	6
2	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	3	201.547514	4404.335588	135	4345	266	4467	0	10	10
3	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	4	205.583136	4001.737503	138	3941	274	4064	0	9	9
4	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	5	209.897206	2384.582457	140	2318	280	2451	0	5	5
5	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	6	219.215315	767.650918	147	698	291	838	0	1	1
6	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	7	209.147074	4809.871436	148	4761	268	4863	0	11	11
7	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	8	214.015541	1172.998471	152	1117	279	1234	0	2	2
8	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	9	223.262739	367.155403	161	314	279	424	0	0	0
9	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	10	614.416882	2791.059955	539	2716	689	2866	1	6	18

Understanding Grid Columns

The grid information includes several important columns:

Position Information:

• ``RowNum``: Which row the colony is in (0 to nrows-1)

• ``ColNum``: Which column the colony is in (0 to ncols-1)

• ``SectionNum``: Unique section ID (numbered left-to-right, top-to-bottom)

Bounding Box Coordinates:

• ``MinRowCoord``, ``MaxRowCoord``: Minimum and maximum row coordinates

• ``MinColCoord``, ``MaxColCoord``: Minimum and maximum column coordinates

• ``CenterRowCoord``, ``CenterColCoord``: Center coordinates of the colony

Metadata:

• ``Metadata_ImageName``: Name of the image

• ``Metadata_ImageType``: Type designation (GridImage)

# Example: Find all colonies in row 3
row_3_colonies = grid_info[grid_info['Grid_RowNum'] == 3]
print(f"Colonies in row 3: {len(row_3_colonies)}")
print()
row_3_colonies[['Grid_RowNum', 'Grid_ColNum', 'Grid_SectionNum']]

Colonies in row 3: 9

	Grid_RowNum	Grid_ColNum	Grid_SectionNum
29	3	10	46
30	3	4	40
31	3	11	47
32	3	5	41
33	3	7	43
34	3	2	38
35	3	0	36
36	3	3	39
37	3	6	42

# Example: Find colonies in a specific section (e.g., section 25)
section_25 = grid_info[grid_info['Grid_SectionNum'] == 25]
if len(section_25) > 0:
    print(
            f"Section 25 corresponds to row {section_25['Grid_RowNum'].iloc[0]}, column {section_25['Grid_ColNum'].iloc[0]}")
    print(f"Number of colonies detected: {len(section_25)}")
else:
    print("No colonies detected in section 25")

Section 25 corresponds to row 2, column 1
Number of colonies detected: 1

Part 5: Working with Grid Sections

You can extract individual grid sections (wells) from the plate. Sections are numbered from 0 to (nrows × ncols - 1), going left-to-right, top-to-bottom.

# Access the first grid section (top-left)
section_0 = image.grid[0]

print(f"Section 0 shape: {section_0.shape}")
print(f"Number of objects in section 0: {section_0.num_objects}")

Section 0 shape: (404, 404, 3)
Number of objects in section 0: 0

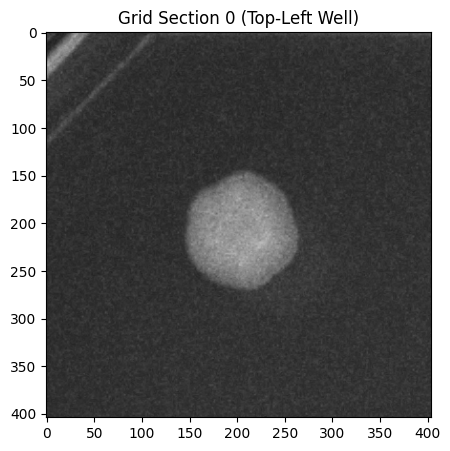

# Visualize a single section
fig, ax = section_0.show_overlay()
plt.title("Grid Section 0 (Top-Left Well)")
plt.show()

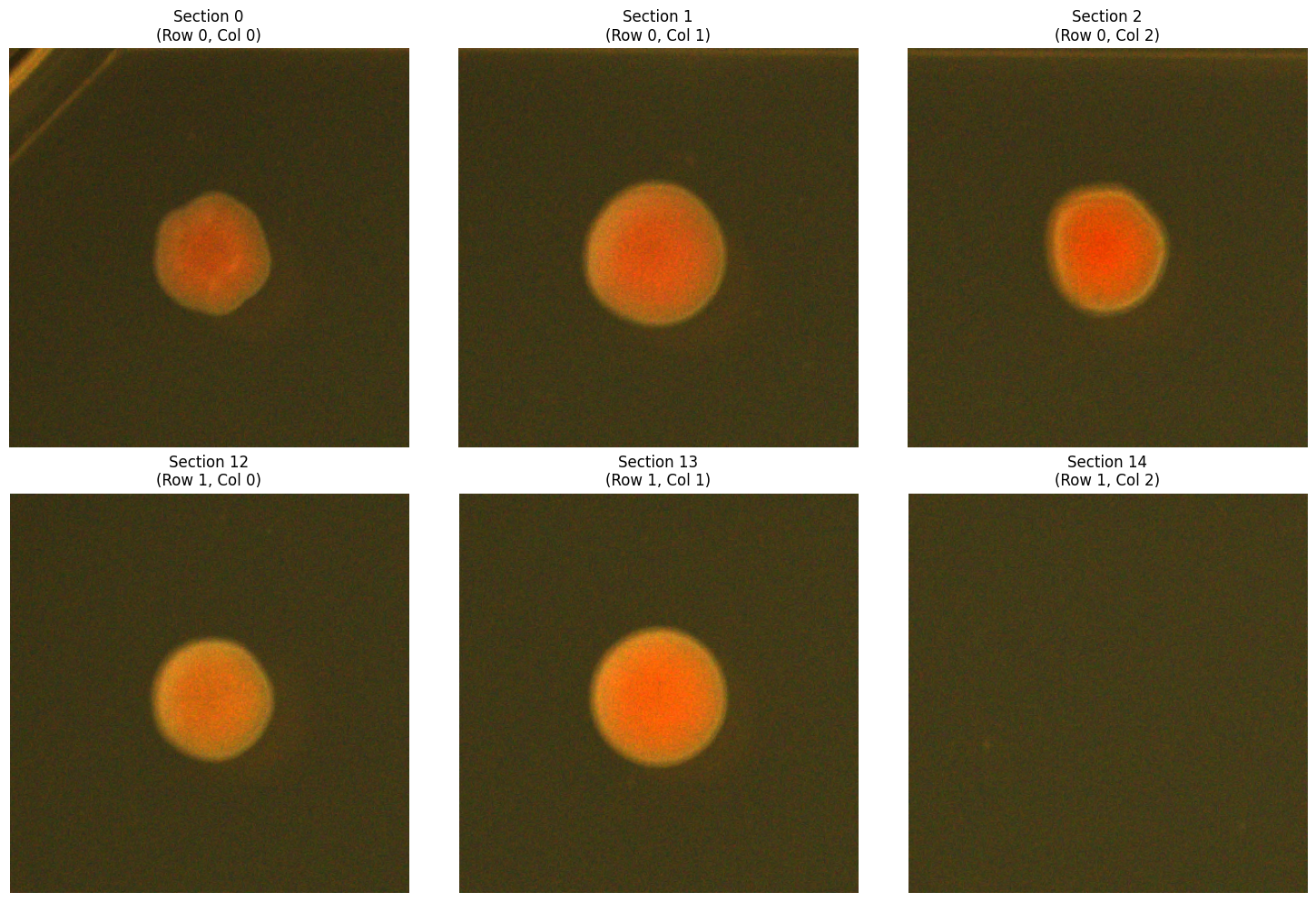

# Compare multiple sections
fig, axes = plt.subplots(2, 3, figsize=(15, 10))
axes = axes.ravel()

sections_to_show = [0, 1, 2, 12, 13, 14]  # First two rows, first 3 columns

for idx, section_num in enumerate(sections_to_show):
    section = image.grid[section_num]  # Access using flat index
    row = section_num//image.ncols
    col = section_num%image.ncols

    section.show(ax=axes[idx])
    axes[idx].set_title(f"Section {section_num}\n(Row {row}, Col {col})")
    axes[idx].axis('off')

plt.tight_layout()
plt.show()

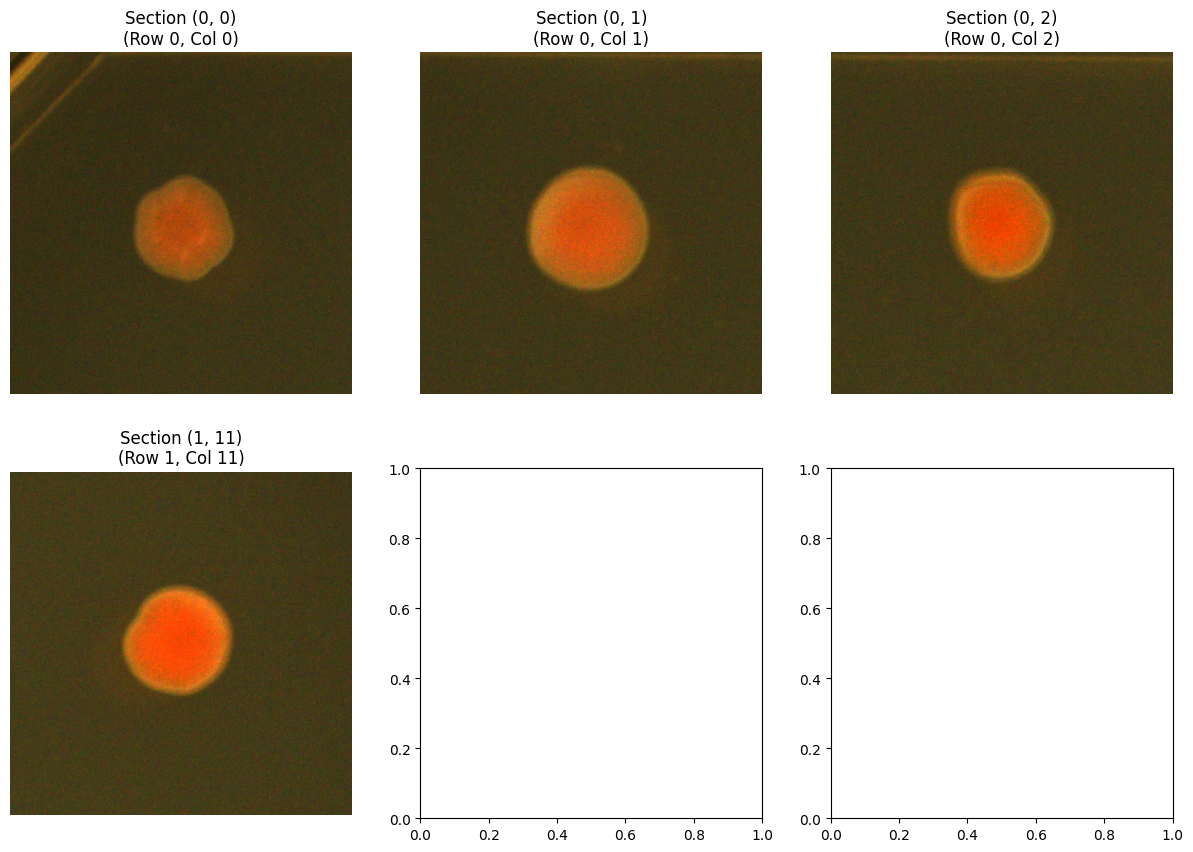

# Compare multiple sections
fig, axes = plt.subplots(2, 3, figsize=(15, 10))
axes = axes.ravel()

# Access using (row, col) tuple
sections_to_show = [
    (0, 0),
    (0, 1),
    (0, 2),
    (1, 9),
    (1, 10),
    (1, 11),
]
for idx, section_num in enumerate(sections_to_show):
    section = image.grid[section_num]

    section.show(ax=axes[idx])
    axes[idx].set_title(f"Section {section_num}\n(Row {section_num[0]}, Col {section_num[1]})")
    axes[idx].axis('off')

plt.tight_layout()
plt.show()

---------------------------------------------------------------------------
IndexError                                Traceback (most recent call last)
Cell In[22], line 15
      6 sections_to_show = [
      7     (0, 0),
      8     (0, 1),
   (...)     12     (1, 13),
     13 ]
     14 for idx, section_num in enumerate(sections_to_show):
---> 15     section = image.grid[section_num]
     17     section.show(ax=axes[idx])
     18     axes[idx].set_title(f"Section {section_num}\n(Row {section_num[0]}, Col {section_num[1]})")

File ~/Projects/PhenoTypic/src/phenotypic/core/_image_parts/accessors/_grid_accessor.py:236, in GridAccessor.__getitem__(self, idx)
    234     row_idx, col_idx = idx
    235     # This will naturally raise IndexError for out-of-range indices
--> 236     idx = int(self._idx_ref_matrix[row_idx, col_idx])
    238 if self._root_image.objects.num_objects != 0:
    239     min_coords, max_coords = self._adv_get_grid_section_slices(idx)

IndexError: index 12 is out of bounds for axis 1 with size 12

Part 6: Advanced Grid Visualization

GridImage provides specialized visualization methods to highlight rows and columns.

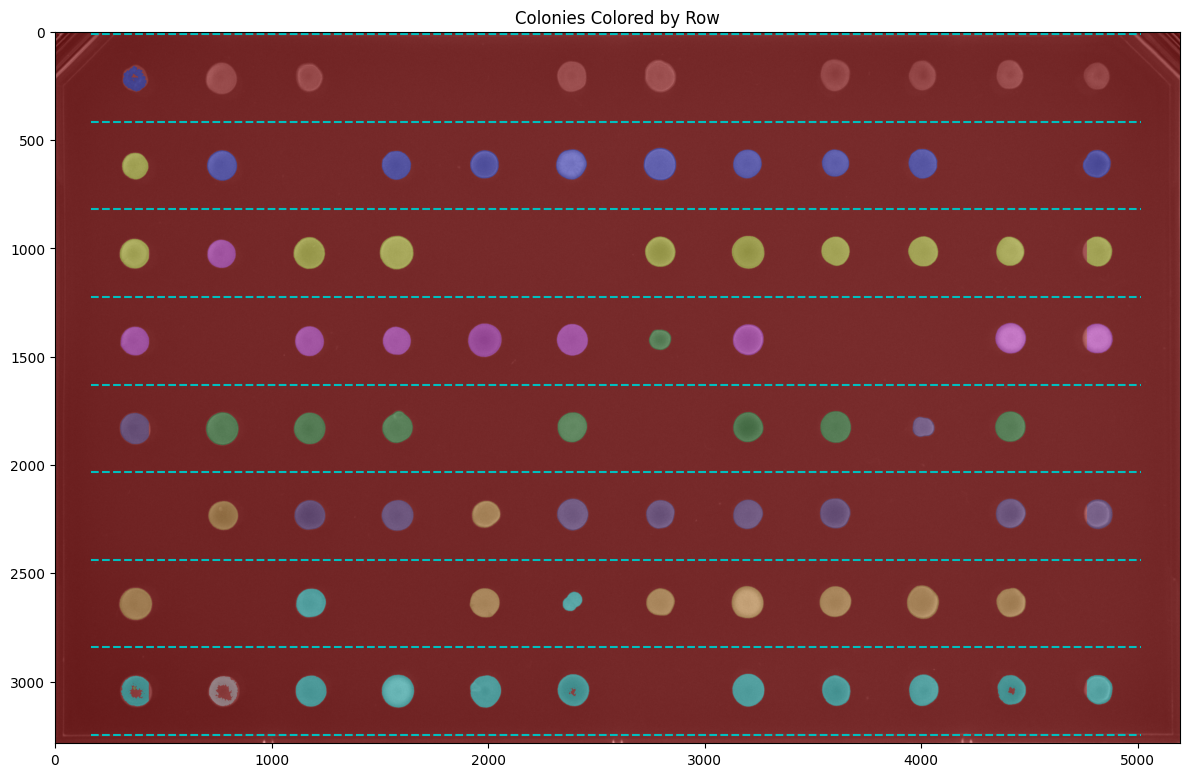

Visualizing by Row

Color colonies according to which row they belong to:

# Show colonies colored by row
fig, ax = image.grid.show_row_overlay(show_gridlines=True, figsize=(12, 10))
plt.title("Colonies Colored by Row")
plt.show()

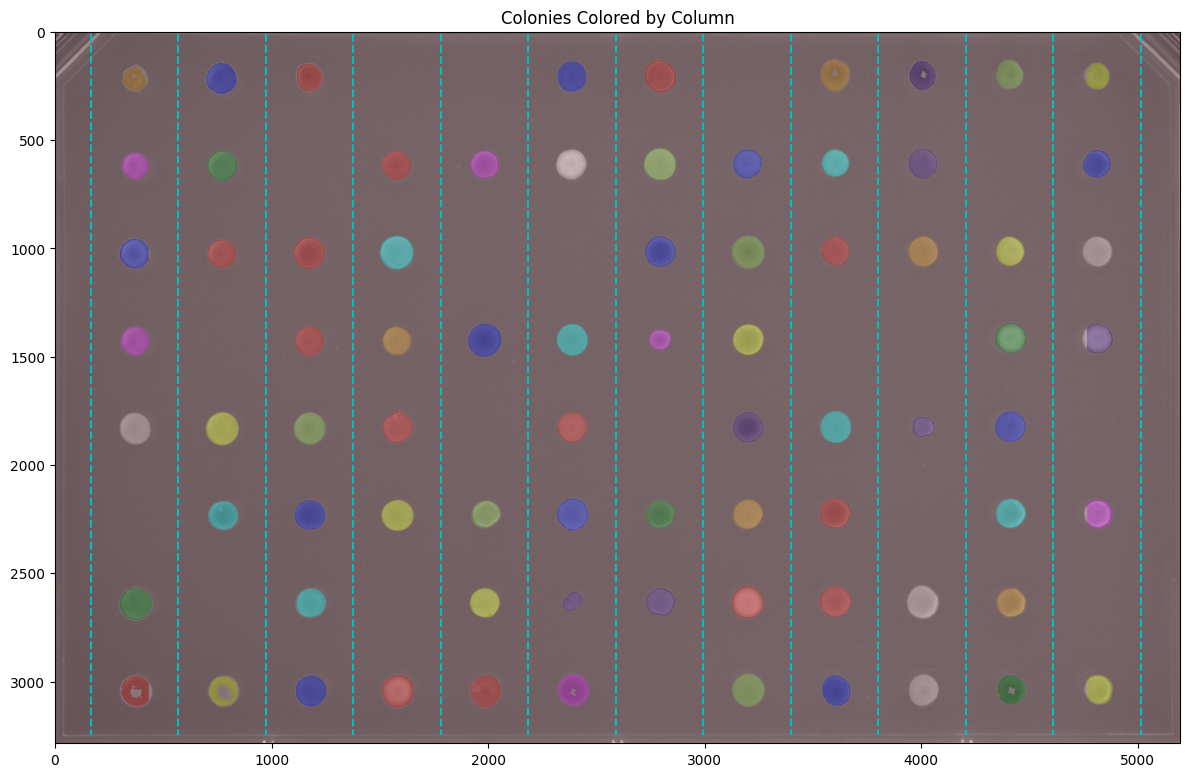

Visualizing by Column

Color colonies according to which column they belong to:

# Show colonies colored by column
fig, ax = image.grid.show_column_overlay(show_gridlines=True, figsize=(12, 10))
plt.title("Colonies Colored by Column")
plt.show()

Accessing Grid Edges

You can get the exact pixel coordinates where the grid lines are placed:

# Get row and column edges
row_edges = image.grid.get_row_edges()
col_edges = image.grid.get_col_edges()

print(f"Row edges (pixel positions): {row_edges}")
print()
print(f"Column edges (pixel positions): {col_edges}")
print()
print(f"Number of row edges: {len(row_edges)} (should be nrows + 1 = {image.nrows + 1})")
print(f"Number of column edges: {len(col_edges)} (should be ncols + 1 = {image.ncols + 1})")

Row edges (pixel positions): [  10  414  819 1223 1628 2032 2436 2841 3245]

Column edges (pixel positions): [ 165  569  973 1377 1781 2185 2589 2993 3397 3801 4205 4609 5013]

Number of row edges: 9 (should be nrows + 1 = 9)
Number of column edges: 13 (should be ncols + 1 = 13)

Part 8: Making Measurements with Grid Data

Now let’s measure colony properties. The grid information is automatically included in the measurements!

from phenotypic.measure import MeasureSize

# Create a size measurement module
size_measurer = MeasureSize()

# Measure all colonies
measurements = size_measurer.measure(image, include_meta=True)

print(f"Measured {len(measurements)} colonies")
print()
measurements.head(10)

Measured 78 colonies

	Metadata_BitDepth	Metadata_ImageType	Metadata_ImageName	ObjectLabel	Bbox_CenterRR	Bbox_CenterCC	Bbox_MinRR	Bbox_MinCC	Bbox_MaxRR	Bbox_MaxCC	Grid_RowNum	Grid_ColNum	Grid_SectionNum	Size_Area	Size_IntegratedIntensity
0	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	1	203.223483	3599.114734	133	3534	277	3666	0	8	8	14538.0	5859.603221
1	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	2	208.305812	2791.626799	134	2722	283	2865	0	6	6	16605.0	7481.397601
2	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	3	201.547514	4404.335588	135	4345	266	4467	0	10	10	12712.0	5459.275299
3	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	4	205.583136	4001.737503	138	3941	274	4064	0	9	9	12263.0	4876.491319
4	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	5	209.897206	2384.582457	140	2318	280	2451	0	5	5	14923.0	6453.527189
5	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	6	219.215315	767.650918	147	698	291	838	0	1	1	15684.0	6666.968775
6	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	7	209.147074	4809.871436	148	4761	268	4863	0	11	11	9995.0	3966.058251
7	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	8	214.015541	1172.998471	152	1117	279	1234	0	2	2	11775.0	4963.391140
8	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	9	223.262739	367.155403	161	314	279	424	0	0	0	8301.0	3091.764911
9	16	GridImage	6d85b9af-e79b-4acc-ac94-88597c1bef16	10	614.416882	2791.059955	539	2716	689	2866	1	6	18	17830.0	9547.184071

Understanding Measurement Columns

The measurements include:

Size Measurements:

• ``Shape_Area``: Colony area in pixels

• ``Shape_EquivalentDiameter``: Diameter of a circle with the same area

• ``Shape_Perimeter``: Colony perimeter length

Grid Information (automatically included!):

• ``Grid_RowNum``, ``Grid_ColNum``, ``Grid_SectionNum``: Position in the grid

Metadata:

• ``Metadata_ImageName``, ``Metadata_ImageType``: Image information

# Analyze measurements by row
row_summary = measurements.groupby('Grid_RowNum')['Size_Area'].agg(['mean', 'std', 'count'])
row_summary.columns = ['Mean Area', 'Std Area', 'Colony Count']

print("Colony Area Summary by Row:")
print()
row_summary

Colony Area Summary by Row:

/var/folders/78/rnctrlmn5kj996kjnq_mmqlh0000gn/T/ipykernel_98842/2810716340.py:2: FutureWarning: The default of observed=False is deprecated and will be changed to True in a future version of pandas. Pass observed=False to retain current behavior or observed=True to adopt the future default and silence this warning.
  row_summary = measurements.groupby('Grid_RowNum')['Size_Area'].agg(['mean', 'std', 'count'])

	Mean Area	Std Area	Colony Count
Grid_RowNum
0	12977.333333	2727.086220	9
1	14087.800000	1777.789251	10
2	15287.500000	1942.377652	10
3	14422.555556	3032.566574	9
4	15037.555556	2906.213822	9
5	14758.900000	1228.125894	10
6	14557.222222	3701.339311	9
7	13627.250000	4767.139911	12

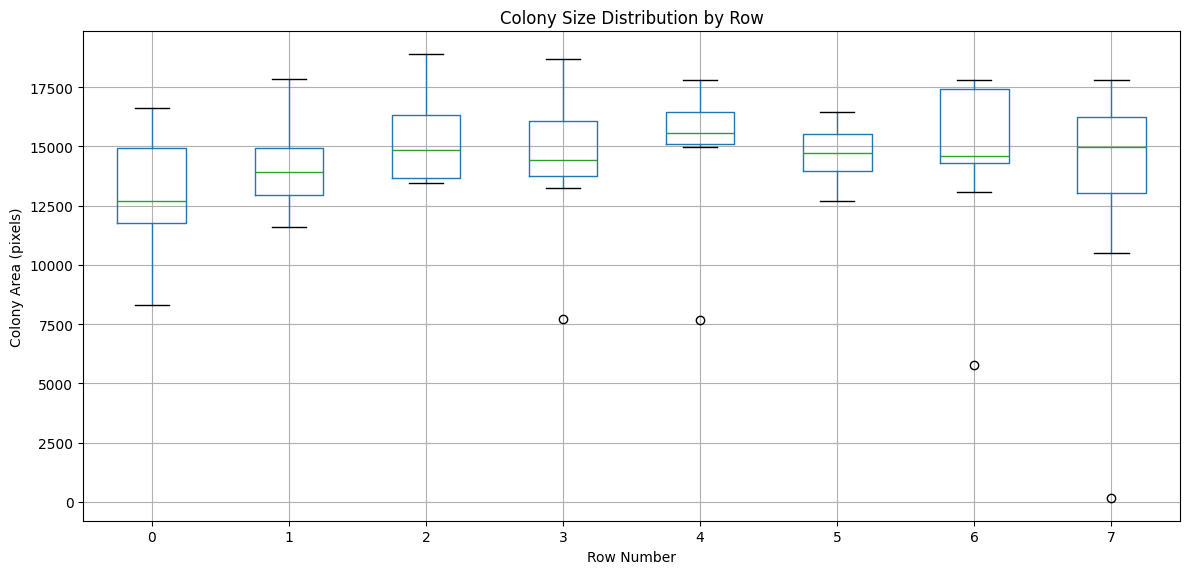

# Visualize area distribution by row
import matplotlib.pyplot as plt

plt.figure(figsize=(12, 6))
measurements.boxplot(column='Size_Area', by='Grid_RowNum', ax=plt.gca())
plt.xlabel('Row Number')
plt.ylabel('Colony Area (pixels)')
plt.title('Colony Size Distribution by Row')
plt.suptitle('')  # Remove default title
plt.tight_layout()
plt.show()

Exporting Data for Further Analysis

You can easily export measurements to CSV for analysis in other programs (Excel, R, etc.)

# Export to CSV
# measurements.to_csv('colony_measurements_with_grid.csv')

# For this tutorial, let's just show what the export would look like
print("Example exported data structure:")

measurements[['Grid_RowNum', 'Grid_ColNum', 'Grid_SectionNum', 'Size_Area']].head()

Example exported data structure:

	Grid_RowNum	Grid_ColNum	Grid_SectionNum	Size_Area
0	0	8	8	14538.0
1	0	6	6	16605.0
2	0	10	10	12712.0
3	0	9	9	12263.0
4	0	5	5	14923.0

Part 9: Manual Grid Control (Advanced)

In some cases, automatic grid alignment might not work perfectly. You can manually specify grid edges using ManualGridFinder.

This is useful when:

• Colony detection is poor

• Grid alignment is consistently off

• You want precise control over grid placement

from phenotypic.grid import ManualGridFinder

# Example: Create manual grid edges
# You would determine these by looking at your image
# Here we'll use evenly spaced edges as an example

image_height, image_width = image.shape[0], image.shape[1]

# Create evenly spaced row edges (9 edges for 8 rows)
manual_row_edges = np.linspace(0, image_height, image.nrows + 1).astype(int)

# Create evenly spaced column edges (13 edges for 12 columns)
manual_col_edges = np.linspace(0, image_width, image.ncols + 1).astype(int)

print(f"Manual row edges: {manual_row_edges}")
print(f"Manual column edges: {manual_col_edges}")

# Create a manual grid finder
manual_finder = ManualGridFinder(row_edges=manual_row_edges, col_edges=manual_col_edges)

print(f"\Manual grid finder created with {manual_finder.nrows} rows and {manual_finder.ncols} columns")

Manual row edges: [   0  410  821 1231 1642 2053 2463 2874 3285]
Manual column edges: [   0  432  865 1298 1731 2164 2597 3030 3463 3896 4329 4762 5195]
\Manual grid finder created with 8 rows and 12 columns

# To use the manual grid finder, create a new GridImage with it:
# manual_image = pht.GridImage(plate_array, grid_finder=manual_finder)

# For this tutorial, we'll stick with automatic grid finding
print("Note: Manual grid finding is an advanced feature.")
print("The automatic AutoGridFinder works well for most cases!")

Note: Manual grid finding is an advanced feature.
The automatic AutoGridFinder works well for most cases!

Part 10: Alternative Loading Method

You can also load images directly from files using GridImage.imread():

# Example of loading from a file path:
image = pht.GridImage.imread('path/to/your/plate_image.jpg', nrows=8, ncols=12)

# You can also specify other parameters:
image = pht.GridImage.imread(
    'path/to/plate.jpg',
    name='my_experiment',
    nrows=16,  # For 384-well plate
    ncols=24
)

GridImage.imread() supports common formats: JPEG, PNG, TIFF

Summary and Key Takeaways

What We Learned

1. GridImage = Image + Grid Support

   • Inherits all regular Image features (rgb, gray, objmap, etc.)

   • Adds grid-specific functionality for arrayed colonies

2. Automatic Grid Alignment

   • Grid automatically aligns to detected colonies using AutoGridFinder

   • No manual adjustment needed in most cases

3. Grid Information in Measurements

   • RowNum, ColNum, and SectionNum automatically included

   • Easy to analyze by position (row, column, or well)

4. Flexible Grid Access

   • Access entire plate: image

   • Access grid sections: image.grid[0]

   • Access individual colonies: image.objects[0]

Typical Workflow

# 1. Load image
image = pht.GridImage.imread('plate.jpg', nrows=8, ncols=12)

# 2. Enhance and detect
image = GaussianBlur(sigma=5).apply(image)
image = OtsuDetector().apply(image)

# 3. Visualize
image.show_overlay(show_gridlines=True)

# 4. Measure
measurements = MeasureSize().measure(image)

# 5. Export
measurements.to_csv('results.csv')

When to Use GridImage

✅ Use GridImage when:

• Colonies are in a regular array (96-well, 384-well, etc.)

• You need to track position information

• Analyzing replicate experiments

• Comparing specific rows/columns/conditions

❌ Use regular Image when:

• Single colonies or random arrangements

• Position tracking not needed

• Non-gridded experiments

Next Steps

• Try with your own plate images

• Explore other measurement modules (MeasureShape, MeasureIntensity, MeasureColor)

• Use ImagePipeline for complex workflows

• Check out the growth curve tutorial for time series analysis

Additional Resources

• Documentation: Full API reference in the documentation

• Other Examples: Check the examples/ folder for more notebooks

• Help: Open an issue on GitHub for questions or bug reports

Happy analyzing! 🔬
