Browse source images

The Browse tab is a deep-zoom viewer for the raw input images under your selected source root, before you build a pipeline or run anything. It lists every image under the source folder with two cascading dropdowns (dataset folder → image), keyboard navigation, and a nearby-image filmstrip, and renders any one in an OpenSeadragon viewport with a metadata panel.

It is designed to work offline over an SSH tunnel: OpenSeadragon is vendored (no CDN), each source revision is prepared once, and its preview and deep-zoom tiles are kept in a bounded persistent cache for later sessions.

Step 1 - Open the Browse tab

Browse is a leaf tab immediately after Home in the top bar. Open it, or navigate to /browse/:

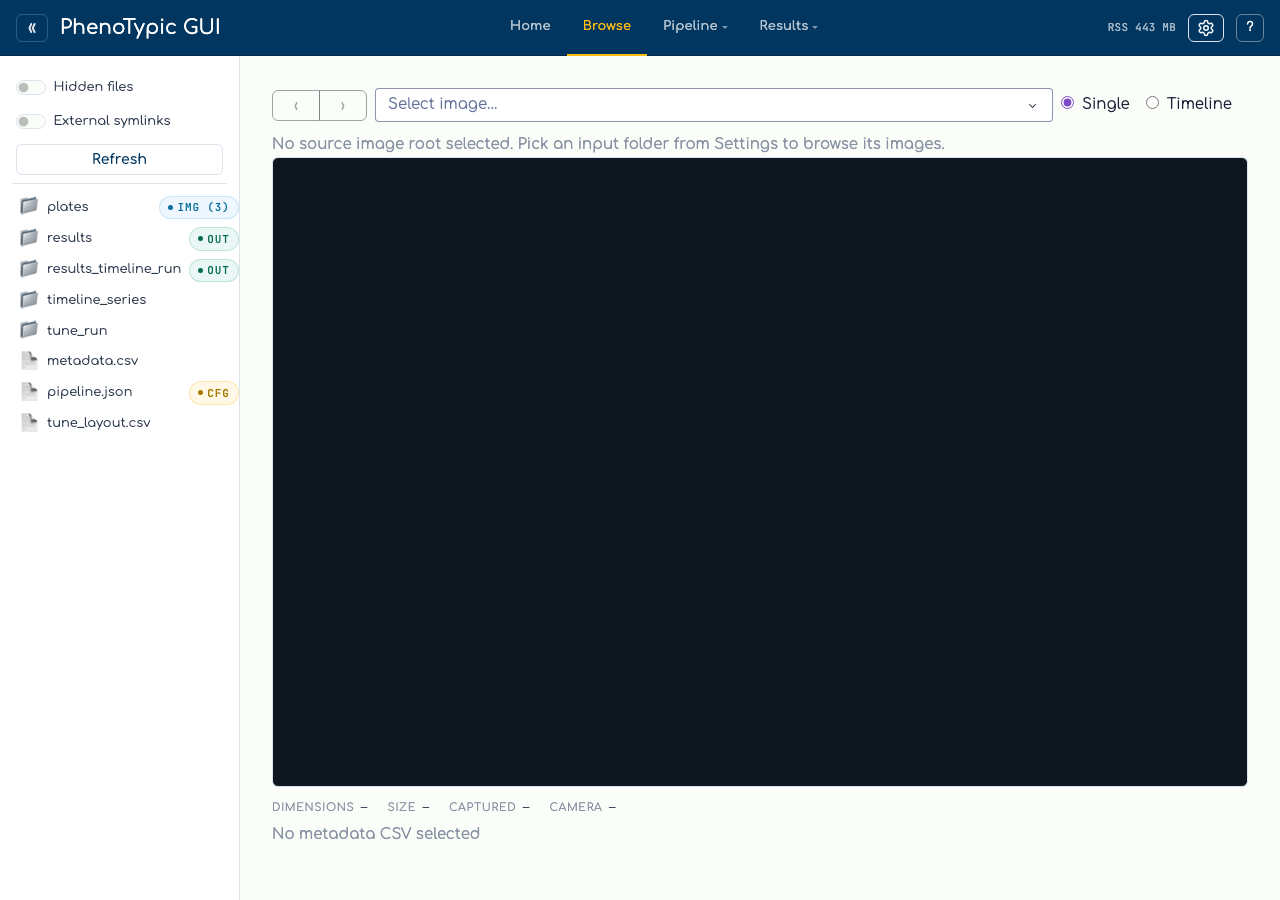

With no source root selected, the page shows a hint asking you to pick one from the top bar. The Browse tab reads the shared source root — the same source: status control the rest of the hub uses — so once a source is set, every page that consumes it (including Browse) updates together.

Step 2 - Select a source

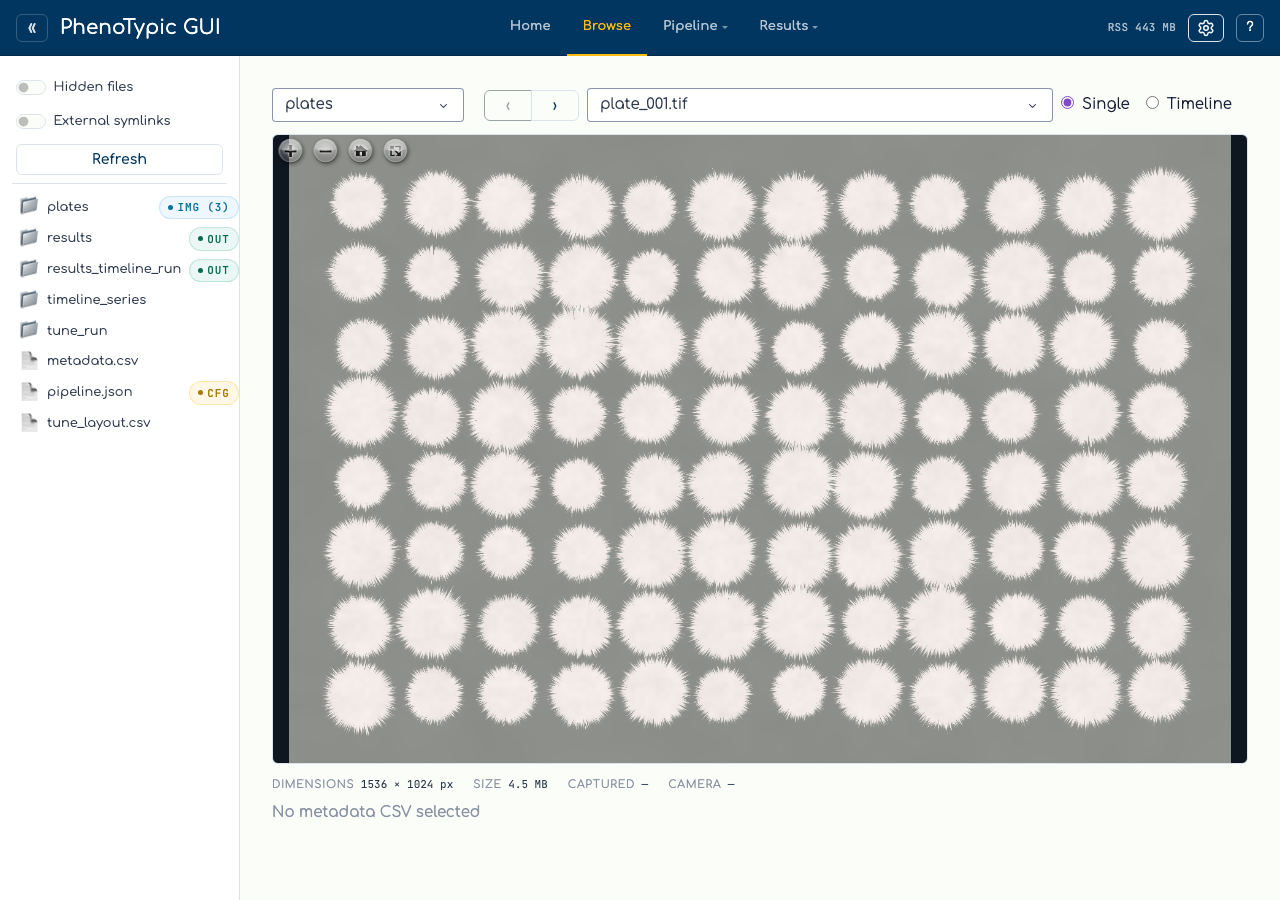

Click the source: status in the top bar to open the sandbox-bounded directory picker, navigate to the folder holding your images, and confirm. The Browse tab reacts immediately:

• Dataset dropdown — images are grouped by their subfolder relative to the source root (. is shown as (root)). When the source folder is flat (all images directly under it), the dataset dropdown is hidden and you only see the image picker.

• Image dropdown — lists the files in the selected dataset. The first image auto-selects so the viewport is never blank.

• ‹ / › stepper — moves to the previous / next image within the current dataset. The buttons disable at the first and last image so stepping never wraps around.

• Keyboard shortcuts — press J / K for the previous / next image or Shift+J / Shift+K to jump ten images. Shortcuts are disabled while you type in a control or use a modal, and arrow keys remain available for OpenSeadragon panning.

• Position and filmstrip — the N of M readout shows your location. The centered filmstrip shows at most four images on either side and indicates whether each revision is Ready, Preparing, Queued, or Failed.

Step 3 - Browse and zoom

The viewport is OpenSeadragon, so zoom (scroll / pinch) and pan (drag) stay smooth even on large plate scans. Browse first shows a lightweight preview, then replaces it with the deep-zoom (DZI) pyramid when preparation completes. The OpenSeadragon instance is reused while you navigate, avoiding unnecessary viewer teardown and setup.

Turn on Keep position to preserve the current center and zoom while moving between images with identical decoded dimensions. It is opt-in and stored in the browser. Images with different dimensions open at their normal home view.

Images are rendered faithfully: any supported format (standard formats and camera RAW alike) is decoded through phenotypic.Image and downcast to 8-bit with a full-range conversion — no auto-contrast or histogram stretching — so what you see matches the pixel data the pipeline will operate on.

Step 4 - Read the metadata

Below the viewport, the metadata panel reports, for the current image:

Field	Source
Dimensions	Pixel width × height.
Size	On-disk file size (human-readable).
Captured	EXIF capture timestamp, when present.
Camera	EXIF camera make + model, when present.

Dimensions and revision data are read from image headers without decoding the full pixel array. EXIF is read with the existing metadata parser for JPEG and TIFF-based RAW such as NEF / CR2. Any absent or unreadable field is omitted, so a plain PNG simply shows — for the EXIF fields.

Prepare a dataset and manage the cache

Normal navigation prepares the selected image first, then a small set of directional neighbours through one bounded background worker. Prepare adds the remaining images at lower priority. The progress display reports ready, failed, and total counts. Stop removes queued dataset work and lets the current native conversion finish. Clear prunes cached revisions while protecting the displayed image and active work.

Prepared previews and DZI pyramids survive application restarts. Cache entries are revision-addressed, so modifying a source image creates a new entry instead of serving stale tiles. Browse begins pruning least-recently-used entries when the cache exceeds 10 GiB and continues to the 8 GiB low-water mark. It first tries <sandbox>/.phenotypic-gui/browse_cache, then a sandbox-namespaced user cache, and finally a temporary session cache when neither persistent location is writable.

The status details identify the active DZI backend. macOS and Windows GUI installs include the official bundled libvips distribution. Linux and HPC installations can use a system libvips module or package. Pillow is the fully supported portable fallback when libvips cannot load or a libvips DZI operation fails.

Note

The initial preview may use a fast thumbnail decoder. The final DZI always uses the faithful normalized image path. A cold revision performs at most one full normalization, and a warm revision performs none. RAW that cannot be decoded on the current platform surfaces an inline viewer notice instead of a broken tile.

Where to next

• Build a Pipeline — once you have eyeballed the input images, compose the pipeline that will process them.

• View Results — after a run, the Results viewer renders each plate with detection overlays and the measurements table.
